Screens

Seven routes. Source: web/src/routes/. Design tokens: web/src/index.css.

Screenshots

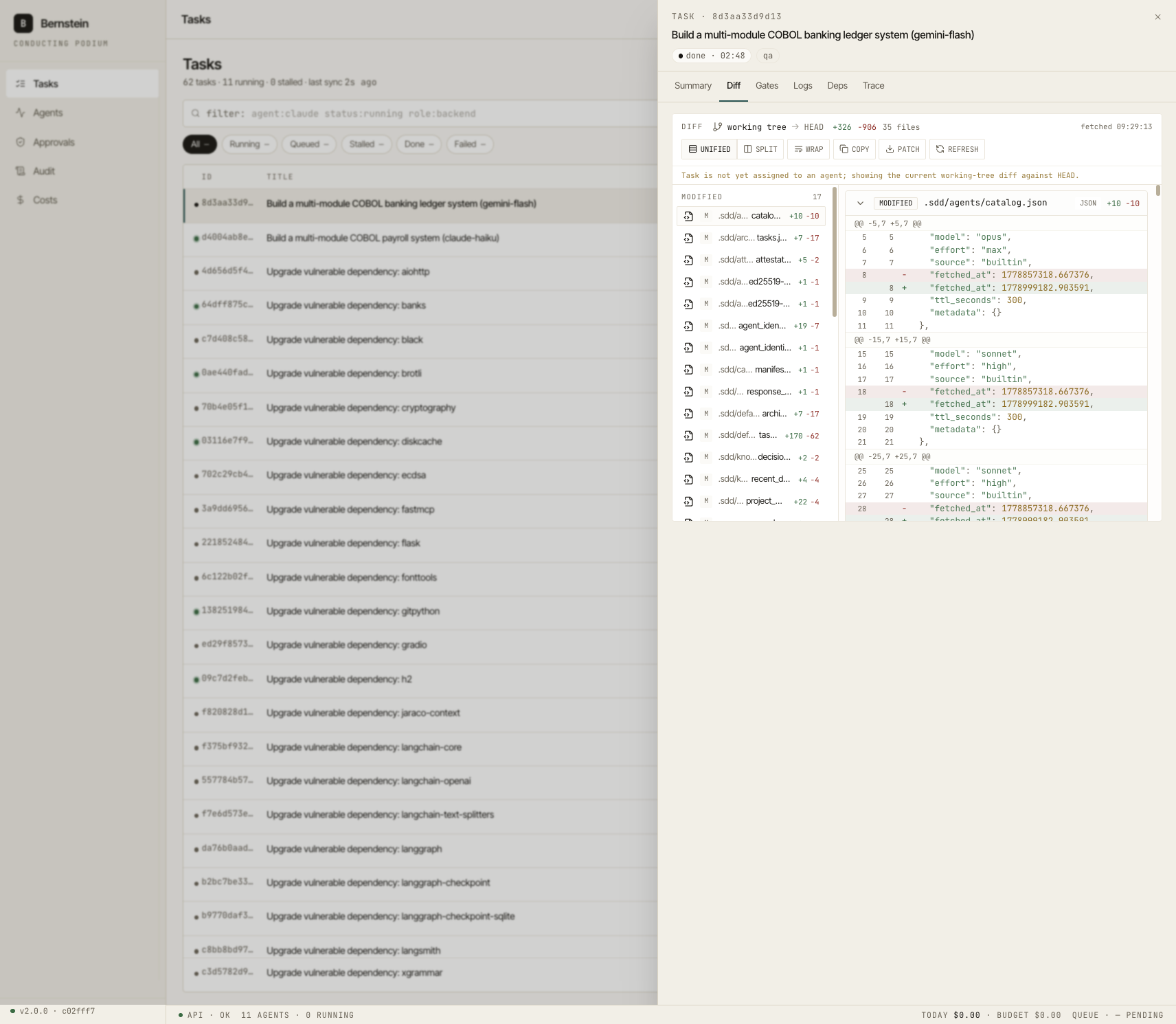

Tasks page with Diff drawer open

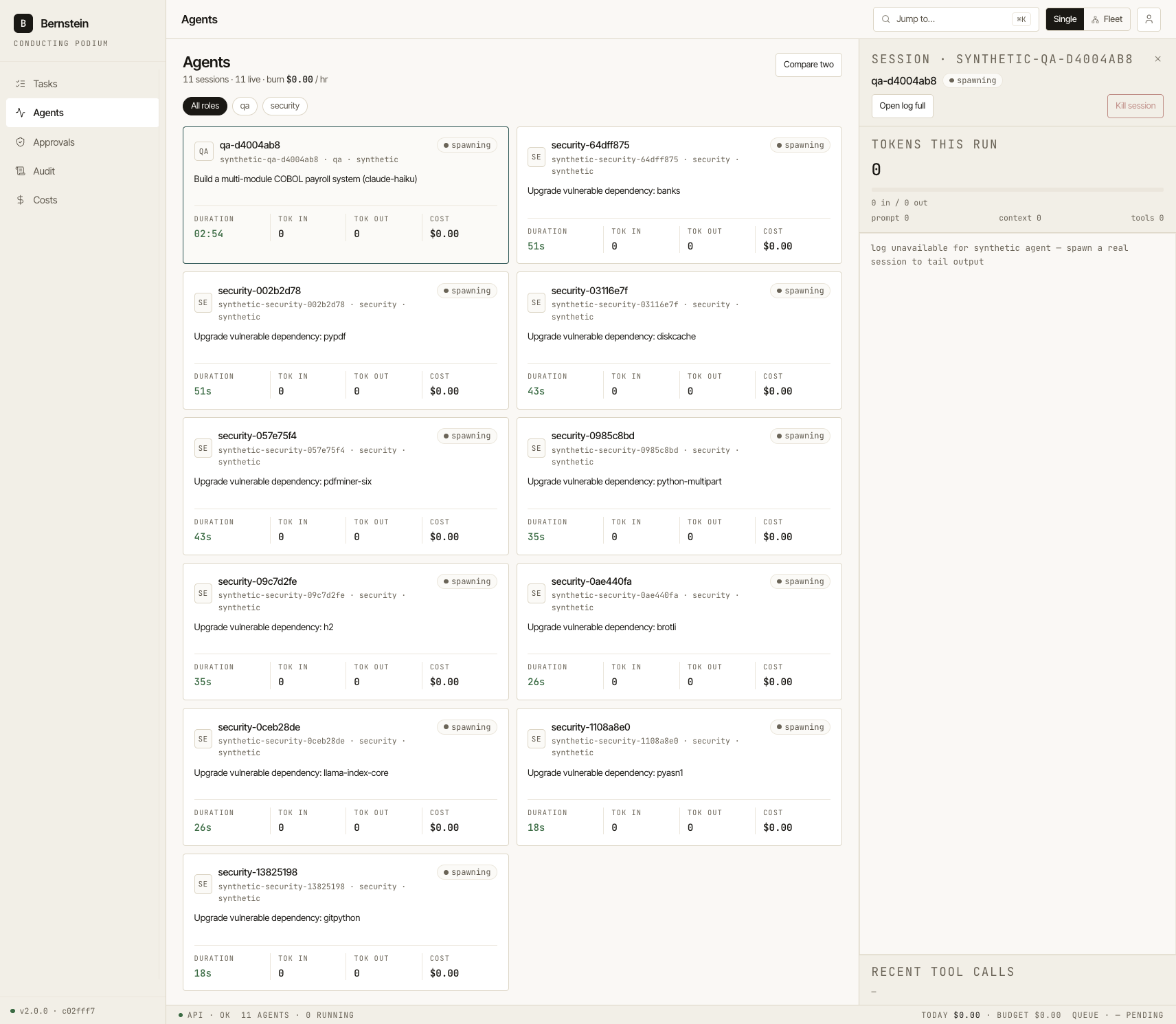

Agents grid with token meter drawer

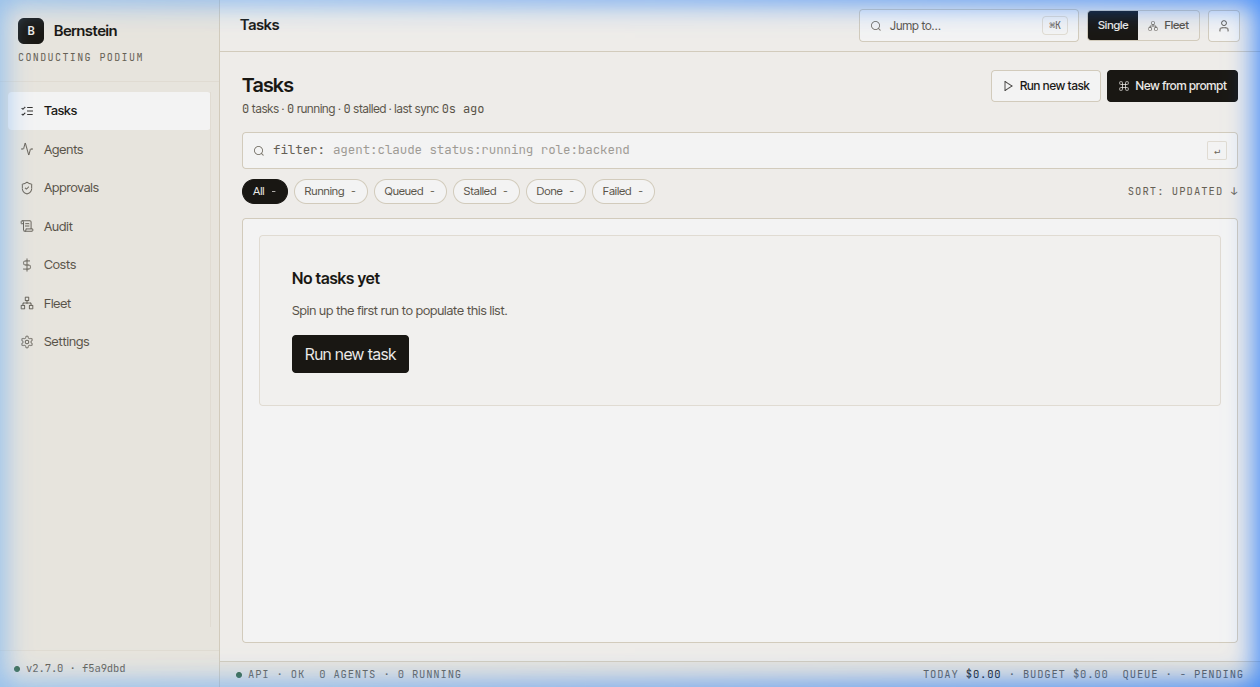

Tasks — empty state, filter chips and Run new task button

Agents — agent card grid view

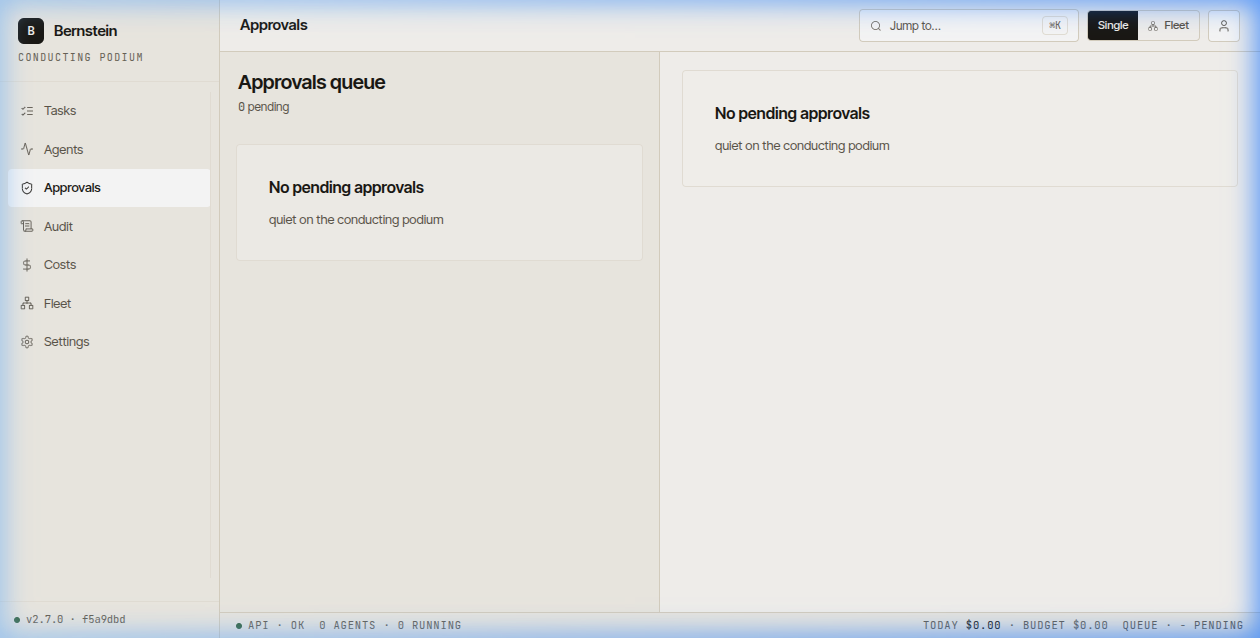

Approvals — empty approvals queue

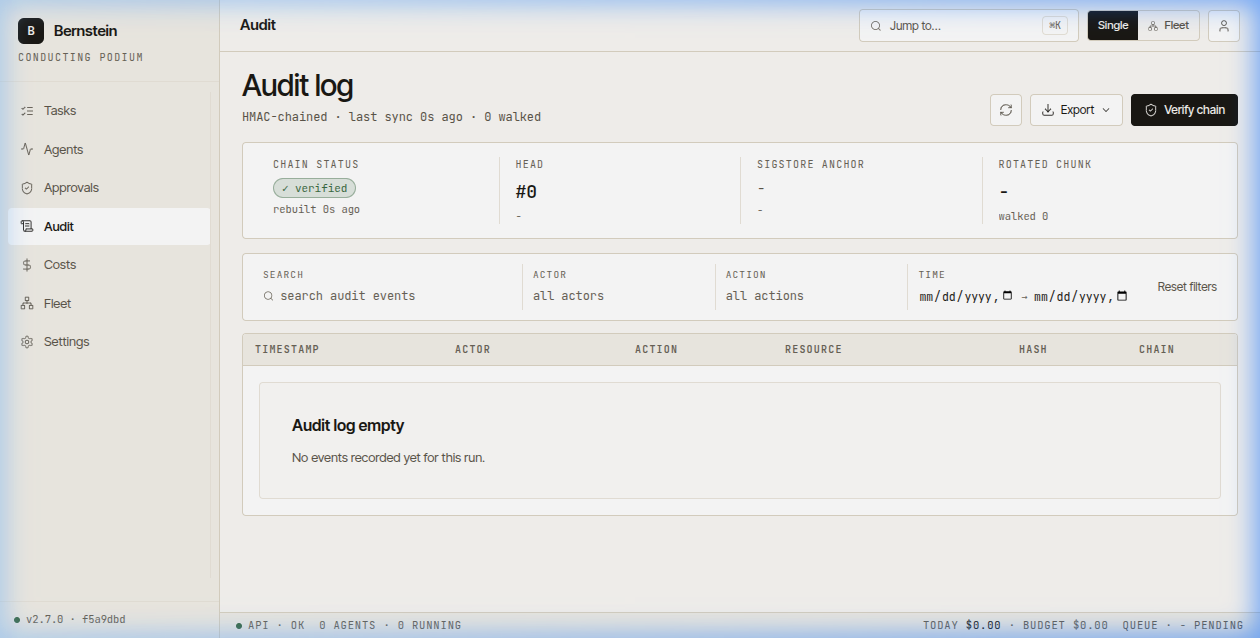

Audit — audit log with chain status and filters

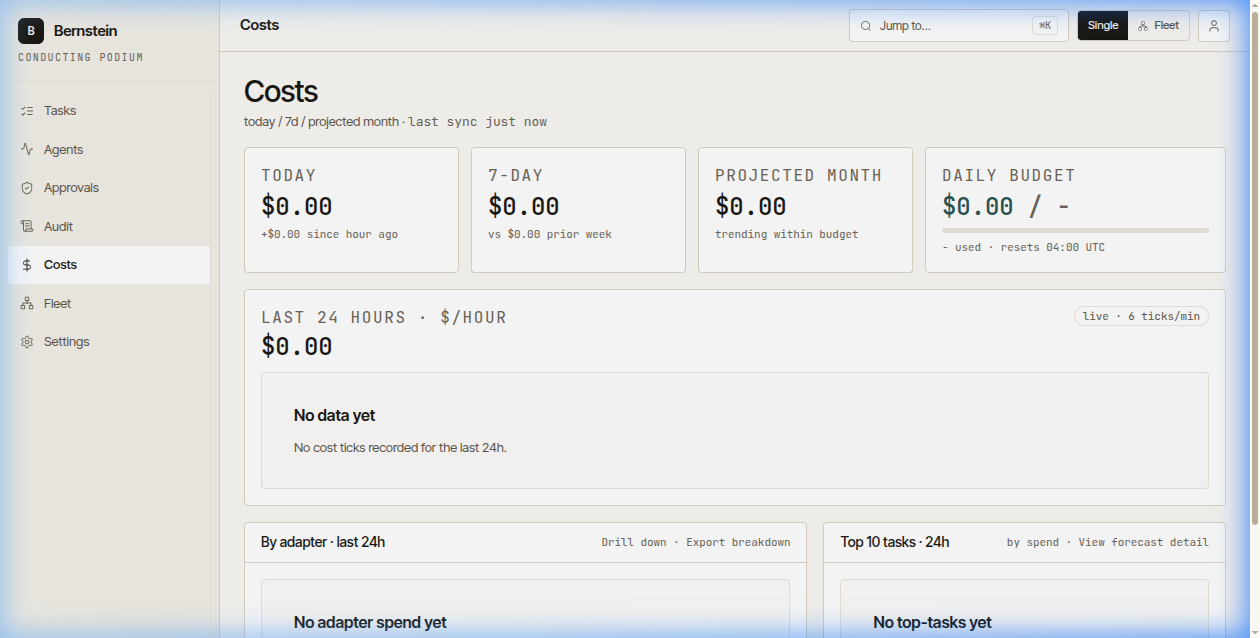

Costs — KPI cards, sparkline and by-adapter table

Fleet — fleet management scaffold

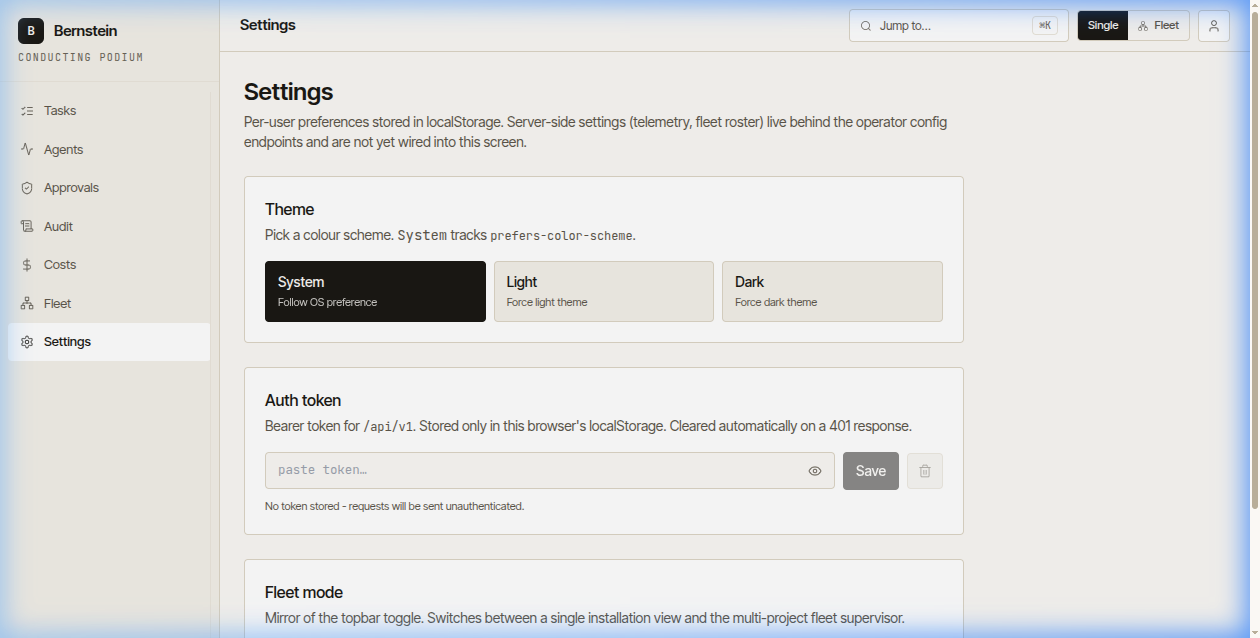

Settings — settings placeholder screen

Tasks (/ui/tasks, default route)

  • Source: web/src/routes/Tasks.tsx.
  • Layout: 2-column grid 1fr 380px. Left = filter chips + table. Right = selected-task drawer.
  • Data shown: task ID, title + branch, agent, role pill, duration (color-coded if stalled), progress bar, cost.
  • Filter chips: All · Running · Queued · Stalled · Done · 24h · Failed (with counts).
  • Operator search syntax: mono input parses agent: / status: / role: token prefixes.
  • Drawer tabs: Summary · Diff · Gates · Logs · Deps · Trace.
  • Actions: Cancel run · Re-run · Change model · Change role · Kill session.
  • Endpoints: GET /api/v1/tasks?status=&agent=&page=, POST /api/v1/tasks/{id}/{cancel,retry,prioritize,kill}, POST /api/v1/tasks/batch-ops. SSE: task_update, task_progress over /api/v1/events.
  • Replaces TUI widget: task_list.py + task_detail_overlay.py + dependency_graph.py.

Agents (/ui/agents)

  • Source: web/src/routes/Agents.tsx.
  • Layout: 2-column grid 1fr 420px. Left = 2-up card grid. Right = selected-agent drawer.
  • Card content: mono 2-letter avatar, name, session id + role, status pill, current task, 4-metric strip (duration, tokens in, tokens out, cost).
  • Drawer: stacked token meter (prompt / context / tools), live log with INFO / PLAN / PASS / WARN / WAIT / LIVE coloring, historical-vs-live separator rule.
  • Actions: kill session, compare two agents (overlay with shared time axis).
  • Endpoints: GET /api/v1/agents, GET /api/v1/agents/comparison, POST /api/v1/agents/{session_id}/kill. Live tail: GET /api/v1/agents/{session_id}/stream (SSE, ANSI-coloured).
  • Replaces TUI widget: agent_log.py + tokens.py + agent_duration.py + worker_badges.py.

Approvals (/ui/approvals)

  • Source: web/src/routes/Approvals.tsx.
  • Layout: 2-column grid 440px 1fr. Left = queue. Right = selected approval (Why card · Diff · Action bar).
  • Queue row: tool name (mono pill), role pill, target line (mono), agent + task footer, risk score chip (low / moderate / elevated / high), wait time.
  • Why? card: shield icon + "N reasons · M mitigations". Bulleted reasons, color-dotted by severity.
  • Diff card: sticky filename + +/− counts, mono 11.5 px, + lines green wash, − lines red wash, max-height: 240px with internal scroll.
  • Action bar: primary "Approve once" + danger "Deny" + ghost "Always allow / Always deny" + kbd hints (A / D).
  • Endpoints: GET /api/v1/approvals/queue?session_id=, POST /api/v1/approvals/{approval_id}/resolve with {decision: allow|reject|always, reason}. Updates from /api/v1/events increment the sidebar badge.
  • Replaces TUI widget: approval_panel.py.

Audit (/ui/audit)

  • Source: web/src/routes/Audit.tsx.
  • Layout: single column, full-width.
  • Chain status banner: 4-col card grid - chain status (verified), head (#ID + truncated hash), Sigstore anchor (rekor entry), rotated (age + chunk).
  • Filters bar: search · actor · action · time, separated by hairline dividers, mono uppercase labels above each value, "Reset" ghost button on right.
  • Table: Timestamp (ISO mono, color-coded operator vs system) · Actor · Action · Resource · Hash (mono truncated …) · Chain status icon (verified / rebuilt).
  • Verify chain modal: triggered by primary "Verify chain". Shows last verified head, walked range, sigstore transparency anchor pointer, "Re-verify from chunk #" button.
  • Endpoints: GET /api/v1/audit?event_type=&search=&from=&to=&page=&page_size= → {items,total,page,page_size}. Export: POST /api/v1/audit/export?format=csv|jsonl.
  • Replaces TUI widget: none - audit chain inspection had no TUI surface.

Costs (/ui/costs)

  • Source: web/src/routes/Costs.tsx.
  • Layout: single column, fluid grid.
  • Top KPI row: 4 cards (1fr 1fr 1fr 1.4fr) - today · 7 d · projected month · daily-budget gauge with 5 px progress bar.
  • 24 h sparkline: recharts <BarChart>, 8 px bars / 2 px gap, last bar full accent. Dashed gridlines at 25 / 50 / 75 %. Mono x-axis labels (−24h / −18h / −12h / −6h / now).
  • By-adapter table: Adapter (mono) · Calls · Tokens · Cost · Share (progress + %) · Δ 7 d (mono colored: green if reduced, warning if > +20 %).
  • Top 10 tasks: index column (mono 01–10) · title + agent meta · cost (mono bold right).
  • Endpoints: GET /api/v1/costs/current, /costs/history, /costs/by-tag, /costs/forecast. Live ticks: GET /api/v1/events/cost.
  • Replaces TUI widget: cost_sparkline.py.
